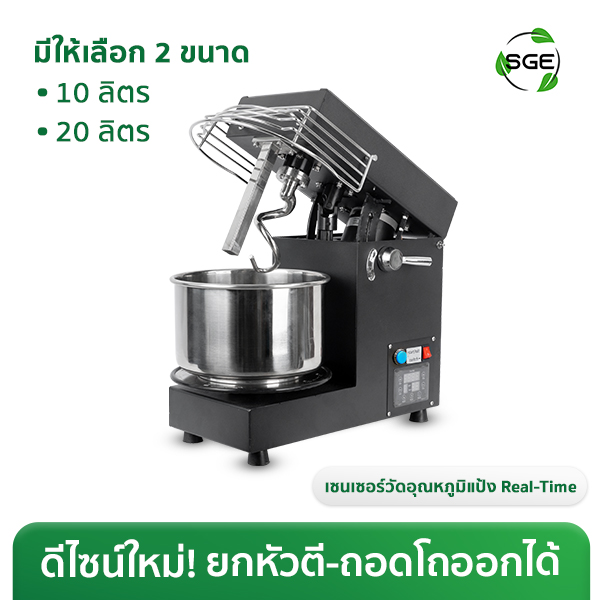

Spiral Mixer Model SPIDO (Lift Head and Detachable Bowl)

Spiral Dough Mixer, 20-Liter with 8 kg Capacity per Batch and Removable Tilt-Head Design, Model SPIDO

Name: Spiral Dough Mixer, 20-Liter with 8 kg Capacity per Batch and Removable Tilt-Head Design, Model SPIDO
SKU: DK-SPIDO
Availability: OutOfStock

~~Price range: ฿28,900.00 through ฿38,500.00~~
Price range: ฿25,900.00 through ฿35,500.00

฿20 Off 1st Order

Discounted Shipping from ฿299

Pre-order product, please order via LINE

SPIDO spiral dough mixer specially designed for all types of dough with a spiral mixing arm and rotating bowl. Its gentle kneading action develops the dough without damaging the gluten structure. The result is smooth, elastic dough with an excellent windowpane, ideal for professional bakeries.

New design! Lift head and removable bowl
Gentle mixing prevents tearing and supports full gluten development
Low-temperature mixing helps the dough retain moisture
20 L bowl handles up to 8 kg of dough per batch
Nine speed settings with an automatic timer
Real-time dough temperature sensor
Digital control panel stores settings for three recipes
Powerful, heavy-duty motor for demanding workloads
Durable, rust-resistant 304 stainless steel construction
Pairs perfectly with a bakery oven for a complete bakery workflow

View All Mixer, Dough Mixer

Up to 15% Off Sitewide with No Minimum Spend

Earn up to 3,850 Coins.

Select Size

Clear selection

ORDER via LINE

SKU: DK-SPIDO Categories: Dough kneading machine, Food mixer, Spiral Dough Mixer

Get 30 THB shipping discount

Earn up to 3,850 Coins

Fast Delivery
Within 1–2 Days

Official Thai Warranty
Up to 1 Year

Returns & Exchanges
Within 7 Days

0% Interest
Up to 3 Months

Description

Product Size Spiral Mixer Model SPIDO

SKU Code	DK-SPIDO-10	DK-SPIDO-20
Voltage	220V	220V
Power	1,000W	1,000W
Machine Size (W x L x H)	32.6 x 57.7 x 48.1 cm	37.1 x 67.1 x 54.2 mm
*Mixing Bowl Size (ØH)**	∅28 x 17.5 cm	∅34 x 24 cm
Mixing bowl capacity	10 liters	20 L
Flour capacity	0.5 – 4 kg	2-8 kg
Beater speed level	Level 1-9	Level 1-9
Beater speed	150-280 RPM	153-213 RPM
Blender speed	13-24 RPM	13-24 RPM
Operating time setting	0-240 minutes	0-240 minutes
Machine Material	Stainless Steel 304	Stainless Steel 304
Machine Weight	48 kg	60 kg
Price	28,900.-	38,500.-

Features of SPIDO Dough Mixer

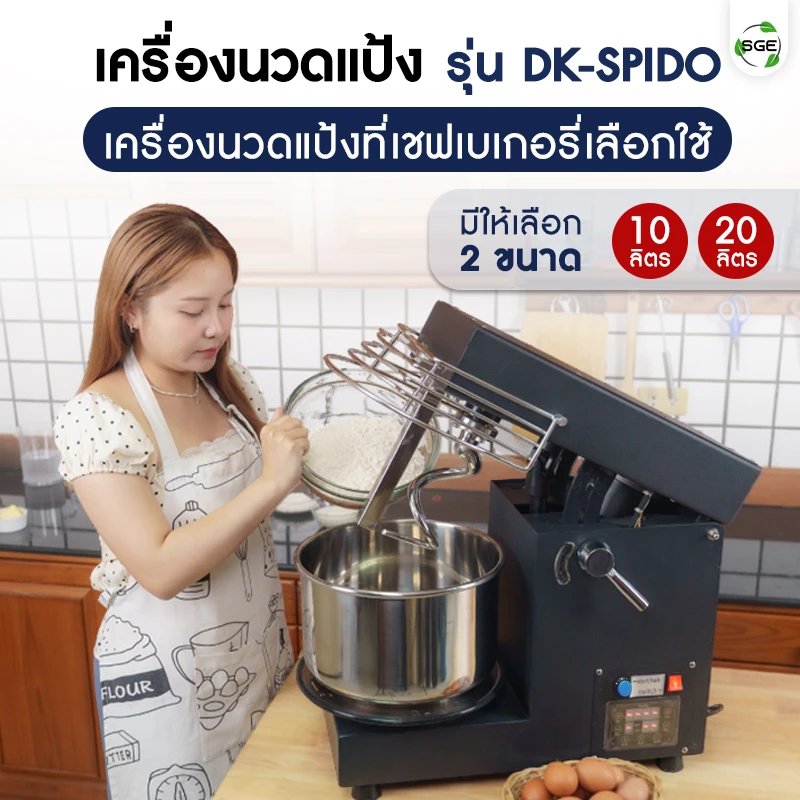

Dough mixer chosen by professional bakers

Spiral Mixer Designed with a spiral beater specifically for kneading dough, enhancing performance to achieve professional-level results. Perfect for commercial use, restaurants, bakeries, etc.

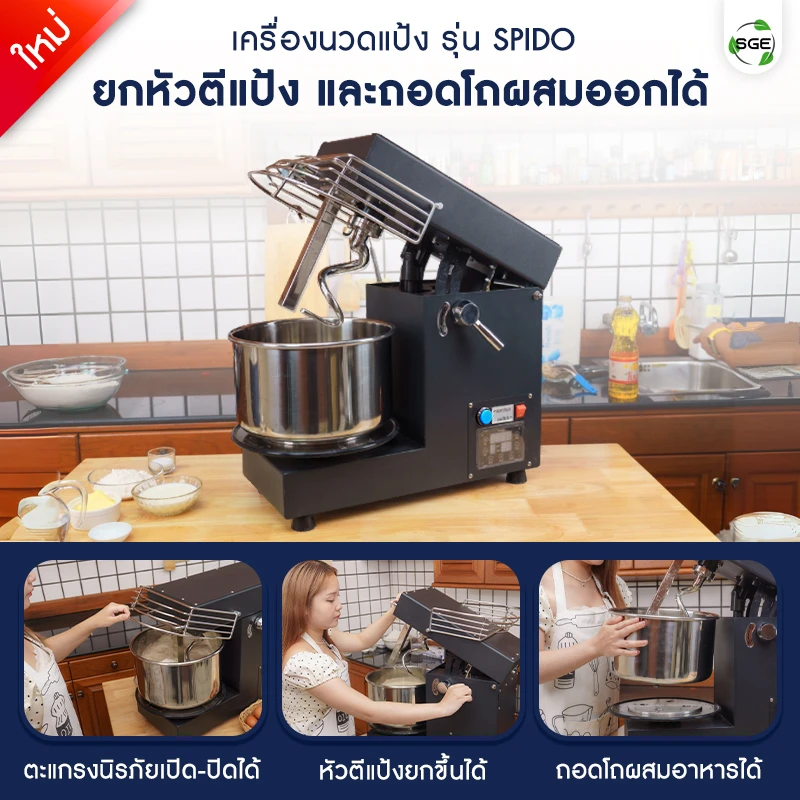

New design! The dough beater can be lifted and the mixing bowl removed.

New design! The dough beater and mixing bowl can be lifted and removed, making it easy to add ingredients and scoop out dough, while also convenient for cleaning after use.

Spiral beater for maximum kneading efficiency.

Spiral Mixer The beater is designed in a spiral shape, which kneads and mixes the dough in repeated circular motions and moves through the ingredients gently at a consistent speed, providing better results than other types of dough mixers. The benefits are:

It does not damage the gluten structure in the dough.
The dough forms a excellent windowpane Does not tear apart
Smooth, fine, chewy, soft dough, does not sift
Mixing the dough is quick and time-saving

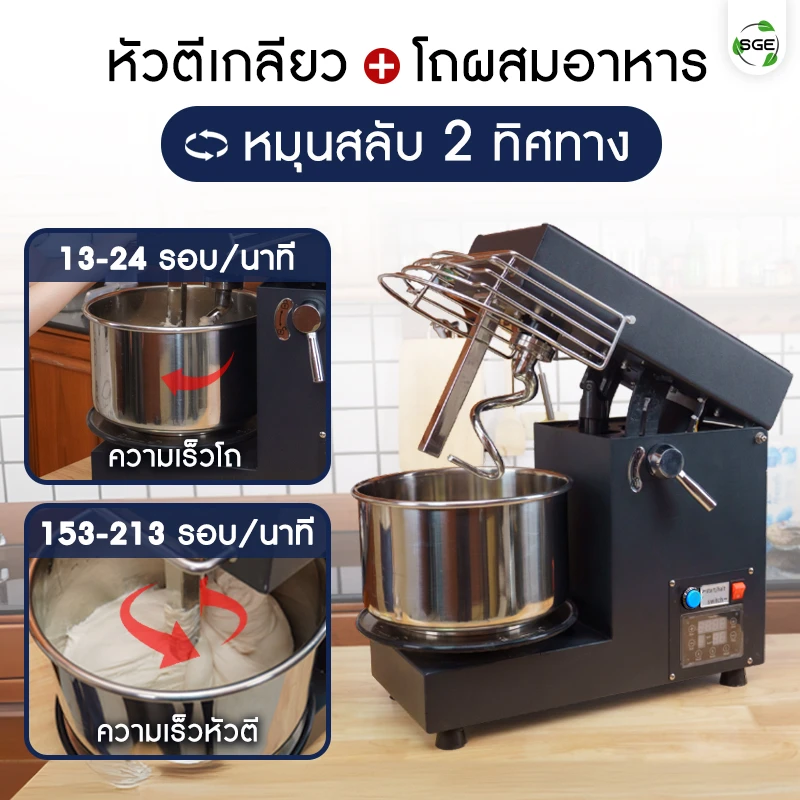

The beater-head and mixing bowl rotate alternately in two directions, helping to stretch and expand the dough structure

The spiral beater-head and mixing bowl working in alternating directions help stretch and expand the gluten structure without breaking the gluten in the dough. This technique allows water and air to penetrate well, helping the dough to form quickly, with a smooth, soft texture because the gluten strands are well-developed.

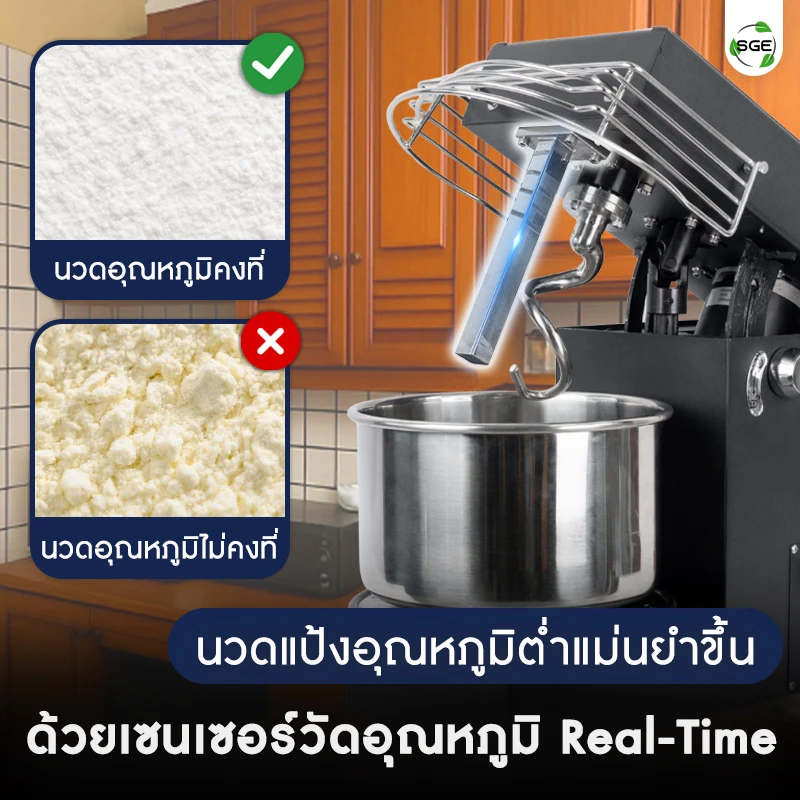

Equipped with a mixing bowl temperature sensor

New model! Equipped with a sensor to detect the temperature in the mixing bowl, allowing accurate real-time temperature readings, preventing the dough from becoming too hot, which can affect moisture and yeast growth in the dough.

High production of 8 kg per batch, suitable for kneading all types of dough

An excellent helper for industrial work that requires mixing high-moisture doughs, such as bread dough, pizza dough, donut dough, etc. Supports a maximum production of 8 kg per batch, saves labor, and significantly reduces time!

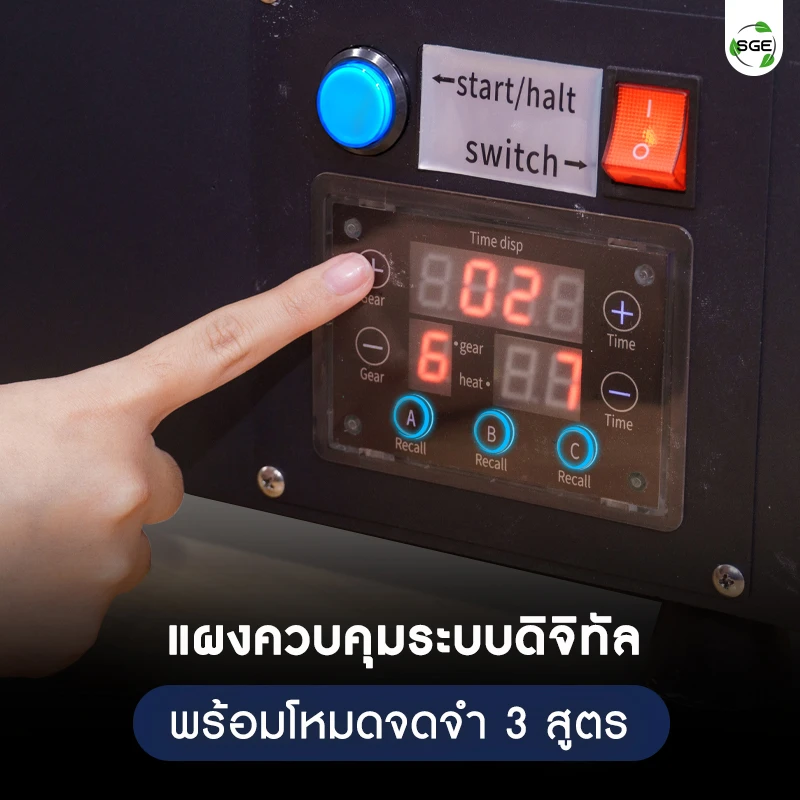

Digital control panel with 3 memory recipe modes

Easy to use with a digital control panel, allows setting kneading time and speed level as desired, with a display for dough temperature andAutomatic dough mixing memory mode with 3 recipes

Strong and powerful motor, handles any type of dough

Enhances kneading power and efficiency with a 1,000W pure copper motor and cast steel gear transmission set, increasing durability and preventing easy breakage Can comfortably knead heavy dough and high-moisture doughs

High-quality materials, attention to every detail

Made from 304 Food Grade stainless steel, durable, strong, safe to use with food, designed with attention to every detail for the most convenient use

Gallery (Actual product photos)

Actual product photo 01 Spiral Mixer SPIDO model (lift the mixer head and remove the bowl)

Actual product photo 02 Spiral Mixer SPIDO model (lift the mixer head and remove the bowl)

Actual product image 03 Spiral Mixer SPIDO model (can lift the mixing head and remove the bowl)

Actual product image 04 Spiral Mixer SPIDO model (can lift the mixing head and remove the bowl)
